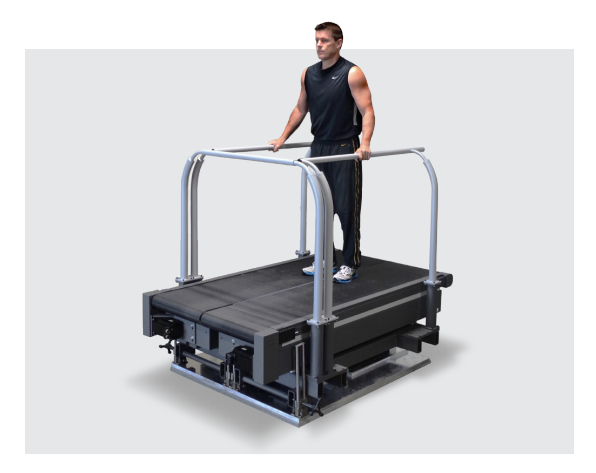

Bertec’s line of Instrumented Treadmills is designed to reduce gait laboratory space requirements  and eliminate the limitations inherent in a traditional gait walkway.

Design Unique design features result in superior dynamic  characteristics of the treadmill. The dual belt treadmill  has two belts which can be controlled independently,  each half having its own 6-modular incline feature that  can be added to the system for uphill and downhill  analysis of movements. The control electronics  incorporate medically isolated transformers.  A smaller version of FIT is available for animal studies (Mini-FIT). The Mini-FIT can be configured to have  four belts which independently measure forces for  quadrupedal animal studies (Quad-FIT). Bertec treadmills are mounted on mounting plates, which  are glued to the floor. Such a configuration along with  total isolation of each half from the other ensures stable  operation of the treadmill.

Unique Features

> Independent 6-component load measurement  from each belt (Fx, Fy, Fz, Mx, My, Mx).

> Independent control of individual belts in both  directions.

> No signal interference from outside sources with  100% digital encoding.

> One year standard warranty with optional  maintenance packages.

Optional Equipment

Incline: Do more tests. Analyze uphill and downhill movements up to 15 degrees.

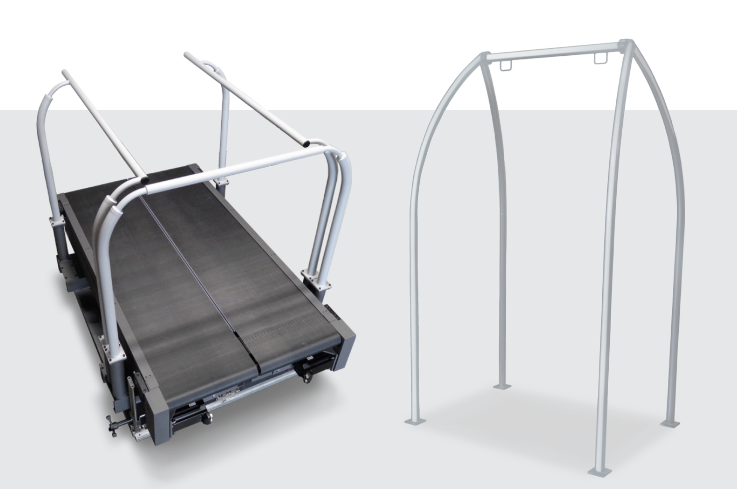

Overhead Structure and Harness: Ensures patient safety. Prevents falls and off-track movement. Users can be comfortable and confident during testing.
