The Compact Motion Lab

The Compact Solution for Motion Analysis

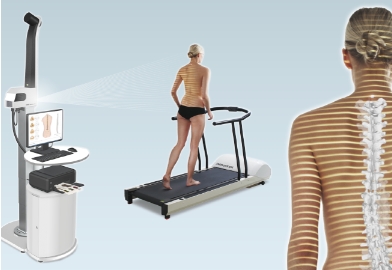

The 4D motion® system for dynamic spine measurement is the key component of the DIERS 4Dmotion®Lab. This motion laboratory is a time and space-saving solution that allows the synchronized measurement of the whole musculoskeletal system.

• Compact Dimensions

• All-in-one Solution

• Individual Configurations


• Fast Examination Procedure


• High Economic Efficiency

3-in-1 Solution

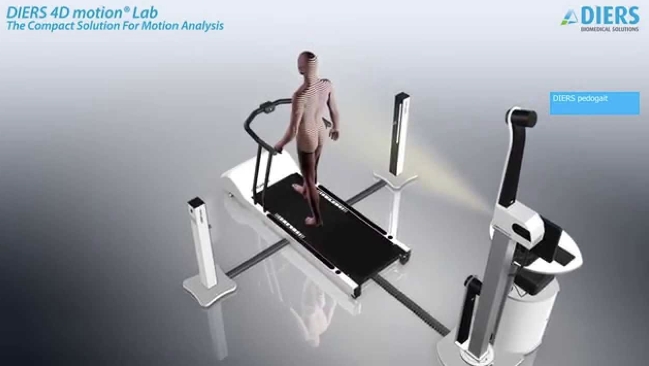

The DIERS 4D motion® Lab consists of the following components:

DIERS 4Dmotion®

DIERS 4Dmotion® is the leading technology in the field of 3D spine and surface topography: Based on an innovative software and an advanced camera system it is possible to analyze and visualize the complex motion pattern of the spine and pelvis during walking.

DIERS leg axis (posterior)

Using the leg axis module, it is possible to provide a two-dimensional documentation of leg axis geometry in addition to spinal and postural analysis. This makes it possible to directly include the effects of correcting foot malpositions on leg axes and spine.

DIERS pedogait

The DIERS pedogait system allows the functional representation of the foot pressure reaction forces during walking. The integrated measuring platform is 1.0 m long with 5.376 sensors for an exact capture of the pressure values.

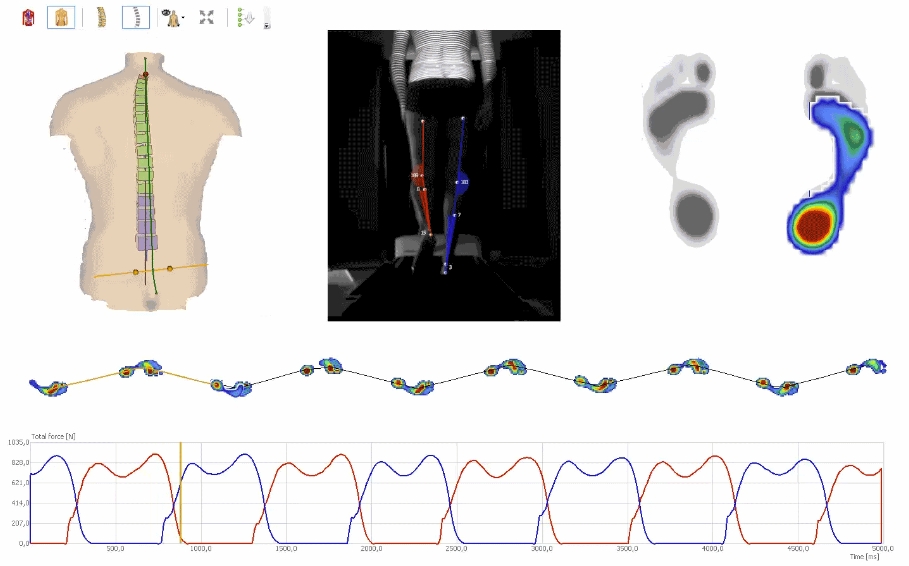

Synchronized Measurement

Dynamic Spine + Leg Axis Geometry + Foot Pressure
