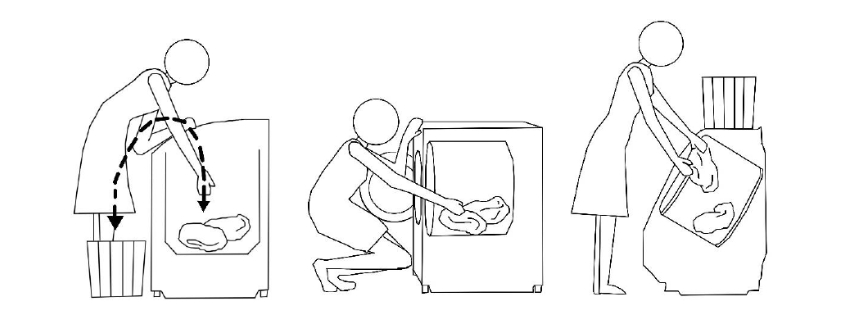

In order to make the opening and closing direction, height, door handle design, etc. of household appliances conform to human opening and closing habits, the rationality of the opening and closing position has always been the focus of the design and development process. For example, how can common drum washing machines allow people to safely and conveniently pick up clothes without squatting or bending over significantly?
In response to this demand, it is necessary to obtain the three-dimensional space coordinate information of the human body and any object with high accuracy during the research and development process, divide the human body into more links, observe the detailed body posture and position information of the human body, and conduct in-depth analysis of biomechanics, ergonomics, and human simulation. For users of different ages or heights, evaluate the positional rationality of product design from the perspective of comfort.

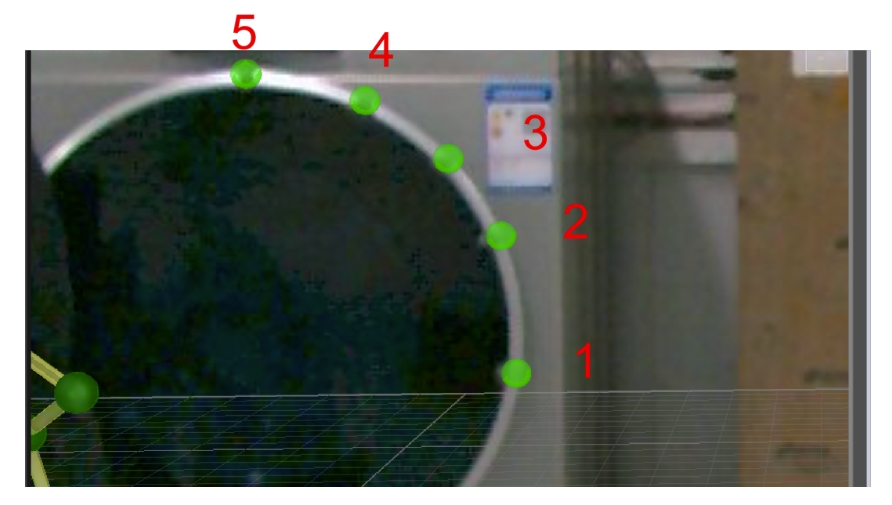

We take a certain brand of drum washing machine as an example, select five test points at the opening and closing, and use the QUALISYS 3D motion capture system to collect biomechanical data when the subjects open and close the washing machine at different test points.
For more information about the experiment, please contact Shanghai Fengyou Biomechanics R & D Center: http://www.delsys.online/Zz_measure.omgl.com.cn_all/show-2195.html
QUALISYS 3D motion capture system
Optical motion capture can provide accurate 3D positions of different limbs, thus enabling the establishment of biomechanical models describing the subject. In operation, it is generally necessary to paste reflective points at key positions of the target object, commonly known as Marker points. High-speed infrared cameras are used to capture the movement trajectories of reflective points on the target object, thus reflecting the movement of the target object in space.
Rugged, high-resolution, smooth operation
Acquire the three-dimensional space coordinate information of the human body and any object with high accuracy.
It allows for in-depth analysis of biomechanics, ergonomics, and human simulation.
It can be combined with a force table to analyze the force of each joint of the human body, and calculate important indicators of the human body such as joint torque, joint power, and joint energy.
The human body can be divided into more links to observe the details of the body, position information, such as the bending angle of the human spine.
It can accurately obtain the relative positional relationship between objects and the human body.
Accurately analyze the displacement curve of the object, the three-dimensional space position curve, the surface curvature of the object, etc.
Accurate analysis of the position of the joint between the object and the human body/object and object.
It can analyze the movement of each joint in the hand in detail to evaluate human comfort.
· Can analyze the deformation of an object after being stressed.
It can accurately measure the body shape of the human body, the size of various parts of the body, and the length, width and height of objects.
It can accurately measure the vibration frequency, shaking, and vibration trajectory of objects.
· Real-time control of any object such as a robotic arm and a drone by inputting coordinates through the channel.
Real-time data flow with multiple mainstream plug-ins.
It can support multiple people to collect simultaneously.
· It can establish geodetic coordinates, can establish a 6-degree-of-freedom rigid body for analysis of multiple objects, and can analyze the rotation angle, speed, angular velocity, acceleration, vibration frequency, etc. in various directions such as robotic arms and drones.
