Green is 10x’s brighter  than red

Reduces down time and  product waste due to  misalignment of rolls

Increases production with  proper alignment of rolls

Compact design, fits into  small spaces

FAST and EASY to use

No training required

One-person operation

Facilitates more frequent  roll checks

Pays for itself quickly

Uses proven reflected laser  beam technology

Used for shots up to  10 ft. (3 m) or better

Laser alignment tool for accurate  visual alignment of rolls

Patented Reflected Laser Beam Technology

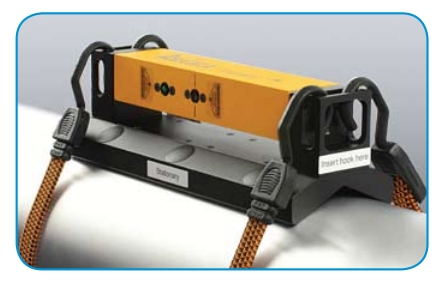

The RollCheck® Green laser alignment system for parallel roll alignment is  lightweight, compact and durable. The system can be magnetically attached to  just about any size roll or attached with the supplied straps. We use our proven  reflected laser beam technology for maximum angular resolution, thus providing  you with the most reliable and accurate visual reading. Using the latest in Green  laser diode technology makes our green laser line 10x’s brighter to the operator  than a red laser line. The RollCheck® can measure spans up to 10 ft. (3 m) or better from roll to roll of  any size, large or small. A laser line is projected from the RollCheck® transmitter  to the reflector mounted on the roll to be checked or aligned. The laser line  projected to the reference line on the reflector indicates immediately if the roll  is aligned vertically to the stationary roll. The laser line is then automatically  reflected back to the transmitter’s reference line indicating if the rolls are  parallel to one another. This system is very easy to use; a single person can  perform the alignment task in minutes with no training! The RollCheck® comes in  its own durable carrying case.

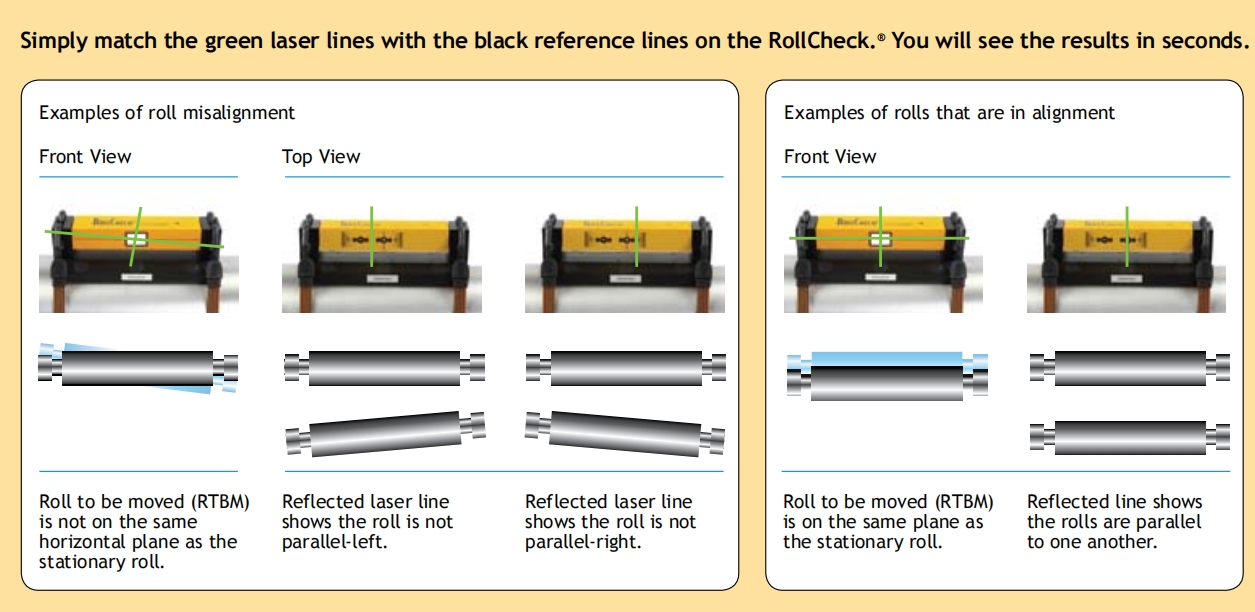

Rolls are aligned vertically . . .

When horizontal line coincides with the horizontal  groove on the reflector unit.

Rolls are parallel . . .

When vertical reflected line coincides with the  vertical groove on the laser transmitter unit.

Parallel Roll Alignment, utilizing the RollCheck® Laser Roll Alignment System to measure and correct vertical and  horizontal angle between 2 rolls. RollCheck® is a laser roll alignment system that facilitates accurate visual alignment of process rolls during replacement  operations. The Laser Transmitter is mounted to a stationary roll that transmits two green laser lines to the Reflector positioned  on the roll to be moved. The operator then is able to view both the vertical (pitch) and horizontal (parallel) angles and  accurately adjust the roll into parallel alignment. RollCheck® is suitable for aligning rolls of most diameters that are spaced from  6” (152 mm) to 10 ft. (3 m) or more apart. It also can be used to align and measure crowned rolls as well. RollCheck® eliminates cumbersome trial and error adjustments which lead to scrap, loss of time and output reduction and is the  ideal tool for efficient roll maintenance.

Patented Reflected Laser Beam Technology
